首頁歐美晶振 FOX晶振FOX晶振,FC3BACBDI40.0-T3,6G基站晶振

FOX晶振,FC3BACBDI40.0-T3,6G基站晶振

頻率：40MHz
尺寸：3.2×2.5mm
應　用： FOX晶振,歐美進口晶振,C3BA貼片石英晶振,FC3BACBDI40.0-T3晶振,3225mm晶振,無源晶振,頻率40MHz,負載8pF,頻率穩定性30ppm,工作溫度-40~125°C,小體積晶振,耐高溫晶振,6G基站晶振,汽車影音系統晶振,GPS導航晶振, 光收發...

FOX晶振,FC3BACBDI40.0-T3,6G基站晶振,FOX晶振,歐美進口晶振,C3BA貼片石英晶振,FC3BACBDI40.0-T3晶振,3225mm晶振,無源晶振,頻率40MHz,負載8pF,頻率穩定性30ppm,工作溫度-40~125°C,小體積晶振,耐高溫晶振,6G基站晶振,汽車影音系統晶振,GPS導航晶振, 光收發器晶振.
FOX晶振,FC3BACBDI40.0-T3,6G基站晶振特點：
AEC Q200合格
TS-16949質量管理體系
公差低至±10ppm
穩定性低至±20 PPM

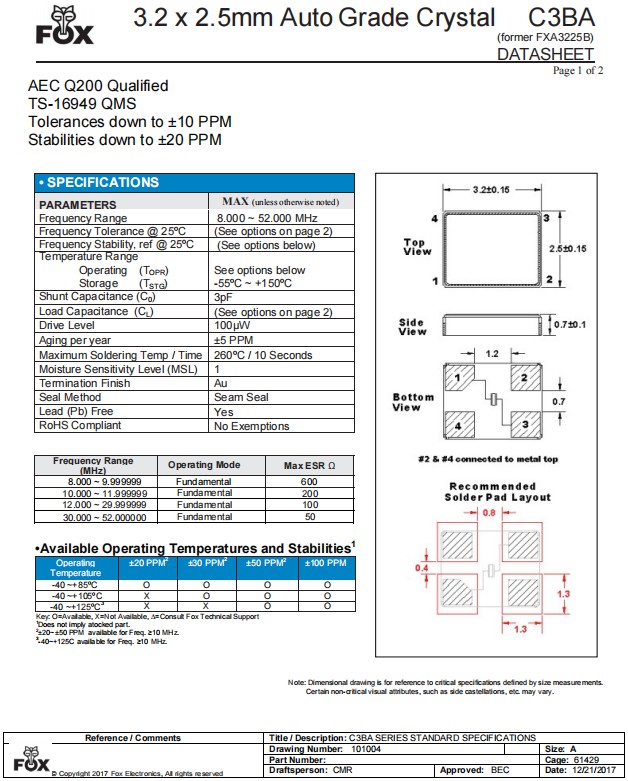

FOX晶振,FC3BACBDI40.0-T3,6G基站晶振規格表

參數	數值
標準頻率	40MHz
頻率容差	30ppm
頻率穩定性	50ppm
工作溫度	−40~+125°C
儲存溫度	−55~+150°C
老化	±5ppm
負載	8pF
并聯電容	3pF Max
激勵功率	100 µW MAX
濕度敏感等級(MSL)	1
濕度敏感等級(MSL)	1
最大焊接溫度/時間	260ºC / 10 Seconds
無鉛	Yes
通過無鉛認證	No Exemptions

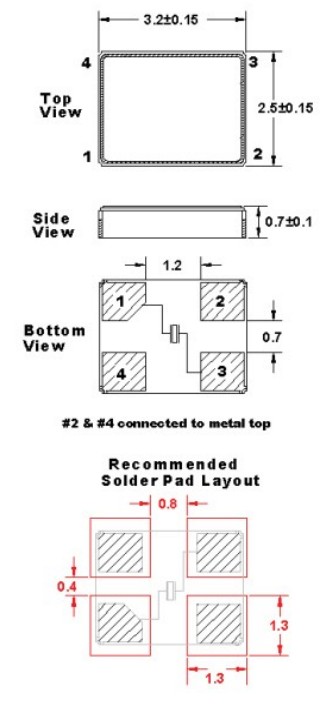

FOX晶振,FC3BACBDI40.0-T3,6G基站晶振尺寸圖

制造商零件編號	供應商	系列	頻率	頻率穩定性	頻率容差	負載電容	工作溫度
FC3BACBDI40.0-T3	Fox 晶振	C3BA	40 MHz	±50ppm	±30ppm	8pF	-40°C ~ 125°C
FC3BACAGI08.0-T3	Fox 晶振	C3BA	8 MHz	±100ppm	±30ppm	12pF	-40°C ~ 125°C
FC3BACAGI09.0-T3	Fox 晶振	C3BA	9 MHz	±100ppm	±30ppm	12pF	-40°C ~ 125°C
FC3BACAGI10.0-T3	Fox 晶振	C3BA	10 MHz	±100ppm	±30ppm	12pF	-40°C ~ 125°C
FC3BACAGI11.0-T3	Fox 晶振	C3BA	11 MHz	±100ppm	±30ppm	12pF	-40°C ~ 125°C
FC3BACAGI12.0-T3	Fox 晶振	C3BA	12 MHz	±100ppm	±30ppm	12pF	-40°C ~ 125°C
FC3BACAGI13.0-T3	Fox 晶振	C3BA	13 MHz	±100ppm	±30ppm	12pF	-40°C ~ 125°C
FC3BACAGI14.0-T3	Fox 晶振	C3BA	14 MHz	±100ppm	±30ppm	12pF	-40°C ~ 125°C
FC3BACAGI15.0-T3	Fox 晶振	C3BA	15 MHz	±100ppm	±30ppm	12pF	-40°C ~ 125°C
FC3BACAGI16.0-T3	Fox 晶振	C3BA	16 MHz	±100ppm	±30ppm	12pF	-40°C ~ 125°C
FC3BACAGI17.0-T3	Fox 晶振	C3BA	17 MHz	±100ppm	±30ppm	12pF	-40°C ~ 125°C
FC3BACAGI18.0-T3	Fox 晶振	C3BA	18 MHz	±100ppm	±30ppm	12pF	-40°C ~ 125°C
FC3BACAGI19.0-T3	Fox 晶振	C3BA	19 MHz	±100ppm	±30ppm	12pF	-40°C ~ 125°C
FC3BACAGI20.0-T3	Fox 晶振	C3BA	20 MHz	±100ppm	±30ppm	12pF	-40°C ~ 125°C
FC3BACAGI21.0-T3	Fox 晶振	C3BA	21 MHz	±100ppm	±30ppm	12pF	-40°C ~ 125°C
FC3BACAGI22.0-T3	Fox 晶振	C3BA	22 MHz	±100ppm	±30ppm	12pF	-40°C ~ 125°C
FC3BACAGI23.0-T3	Fox 晶振	C3BA	23 MHz	±100ppm	±30ppm	12pF	-40°C ~ 125°C
FC3BACAGI24.0-T3	Fox 晶振	C3BA	24 MHz	±100ppm	±30ppm	12pF	-40°C ~ 125°C
FC3BACAGI25.0-T3	Fox 晶振	C3BA	25 MHz	±100ppm	±30ppm	12pF	-40°C ~ 125°C
FC3BACAGI26.0-T3	Fox 晶振	C3BA	26 MHz	±100ppm	±30ppm	12pF	-40°C ~ 125°C
FC3BACAGI27.0-T3	Fox 晶振	C3BA	27 MHz	±100ppm	±30ppm	12pF	-40°C ~ 125°C
FC3BACAGI28.0-T3	Fox 晶振	C3BA	28 MHz	±100ppm	±30ppm	12pF	-40°C ~ 125°C
FC3BACAGI29.0-T3	Fox 晶振	C3BA	29 MHz	±100ppm	±30ppm	12pF	-40°C ~ 125°C
FC3BACAGI30.0-T3	Fox 晶振	C3BA	30 MHz	±100ppm	±30ppm	12pF	-40°C ~ 125°C
FC3BACAGI31.0-T3	Fox 晶振	C3BA	31 MHz	±100ppm	±30ppm	12pF	-40°C ~ 125°C
FC3BACAGI32.0-T3	Fox 晶振	C3BA	32 MHz	±100ppm	±30ppm	12pF	-40°C ~ 125°C
FC3BACAGI33.0-T3	Fox 晶振	C3BA	33 MHz	±100ppm	±30ppm	12pF	-40°C ~ 125°C
FC3BACAGI34.0-T3	Fox 晶振	C3BA	34 MHz	±100ppm	±30ppm	12pF	-40°C ~ 125°C
FC3BACAGI35.0-T3	Fox 晶振	C3BA	35 MHz	±100ppm	±30ppm	12pF	-40°C ~ 125°C
FC3BACAGI36.0-T3	Fox 晶振	C3BA	36 MHz	±100ppm	±30ppm	12pF	-40°C ~ 125°C
FC3BACAGI37.0-T3	Fox 晶振	C3BA	37 MHz	±100ppm	±30ppm	12pF	-40°C ~ 125°C
FC3BACAGI38.0-T3	Fox 晶振	C3BA	38 MHz	±100ppm	±30ppm	12pF	-40°C ~ 125°C
